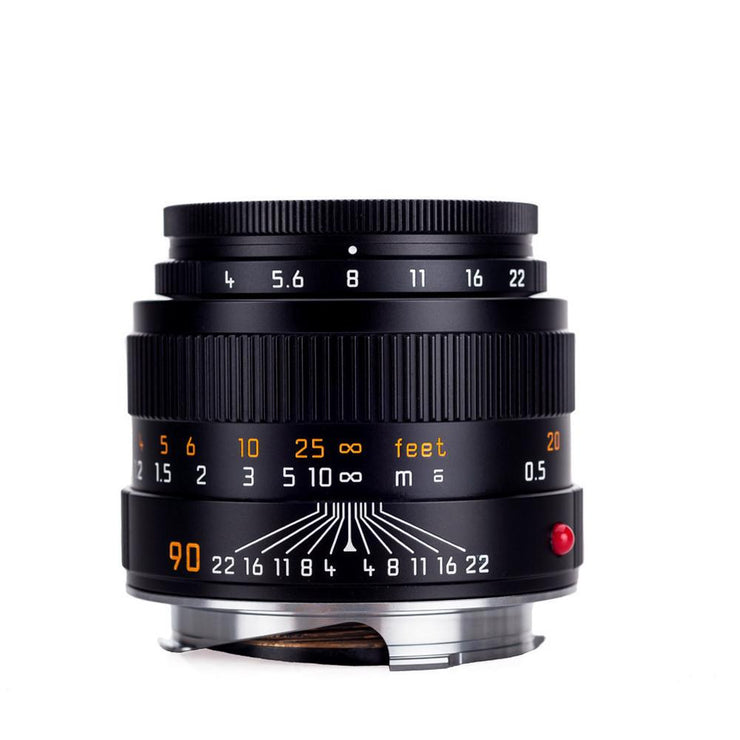

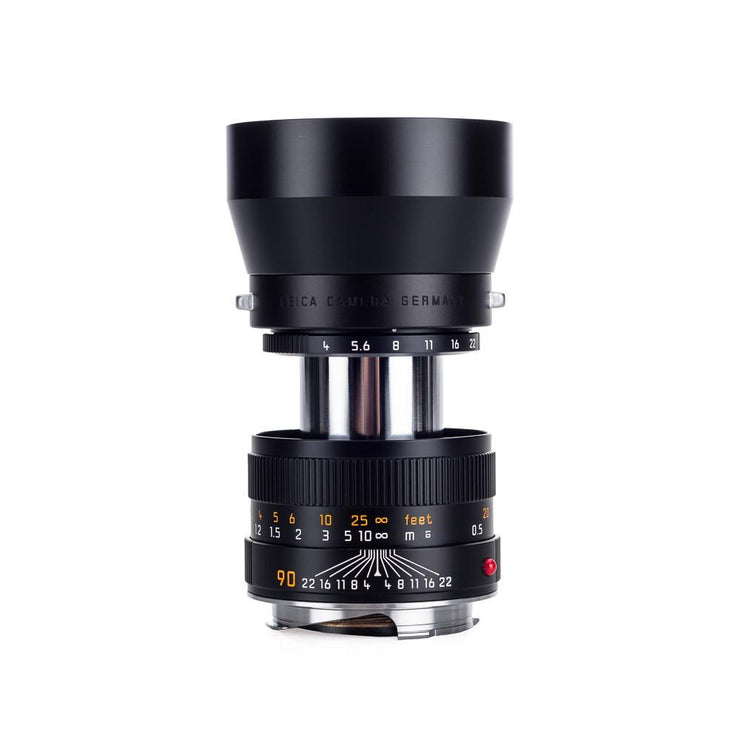

With the Leica Macro-Adapter-M this lens permits macro shots to a magnification of 1:3. Without the adapter, it serves as a compact 90 mm telephoto lens. In combination with the Tri-Elmar, this lightweight telephoto lens provides an excellent, universally usable compact system for traveling. When retracted, it is no larger than a 50 mm lens.

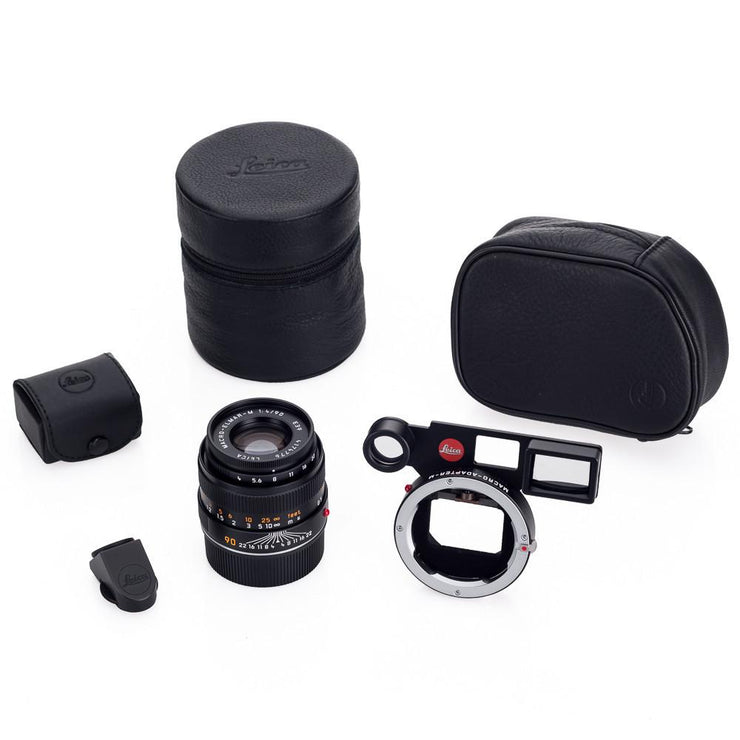

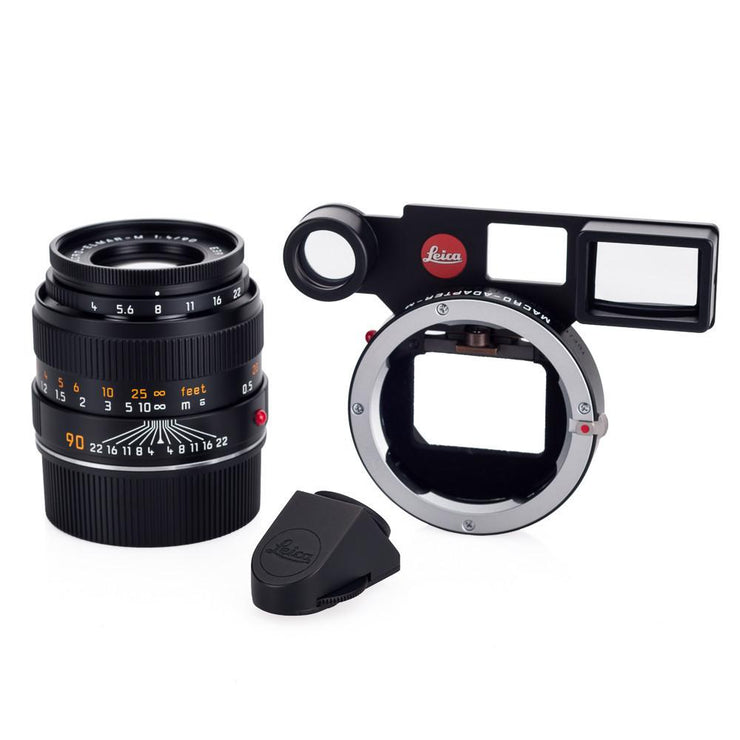

Leica Macro Set M
The attractive set includes the Leica Macro-Elmar-M 90 mm f/4 (black anodized) , the Leica Macro-Adapter-M for M 90 mm f/4 and the M Anglefinder. It is a real boon for shooting in the macro mode, as when shooting flowers, insects and other close-up subjects, and is a great portrait lens.
-
| Angle of view (diagonal, horizontal, vertical) |
27°, 23°, 15°
|
| Optical design |
|
| Number of lenses/groups |
4 / 4 |
| Focal length |
90.0 mm |
| Position of entrance pupil |
32.3 mm (related to the first lens surface in light direction) |
| Focusing range |
0.77 m to Infinity (with LEICA MACRO-ADAPTER-M: 0.5 to 0.76 m) |
| Distance setting |
|
| Scales |
Combined meter/feet graduation |
| Smallest object field |
161 mm x 241 mm (with LEICA MACRO-ADAPTER-M: 72 x 108 mm) |
| Largest reproduction ratio |
1:6.7 (with LEICA MACRO-ADAPTER-M: 1:3) |
| Aperture |
|
| Setting/Function |
With click-stops, half values available, manual diaphragm |
| Lowest value |
22 |
| Bayonet |
Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models |
| Filter mount |
internal thread for screw-in type filters E39, non-rotating lens mount |
| Lens hood |
separate metal lens hood, can be attached in reverse for storage |
| Dimension and weight: |
|
| Length |
59 mm (lens extended, in working position), 41 mm (lens collapsed, in storage position) |
|
Largest diameter
|
52 mm |
| Weight |
Weight: approx. 240 g (black anodized aluminium version), 320 g (silver chrome-plated brass version) |
